Sekonic C-800

Hind: 1599 €
1729 €



Sekonic SpectroMaster C-800 on täisulatusega kolorimeeter, mis saab hakkama igat tüüpi valguse mõõtmisega. Kõrgeresolutsioonilise mõõtmissüsteemi CMOS sensor tuvastab ka vähimad valgusallika kõikumised ning pakkub värvi mõõtmises ületamatut täpsust. Uuel C-800’l on CRI, TLCI, TLMF, TM-30-15.

Täpsustused:
Illuminance Meter Class:     Conforms to requirements for Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments”
Sensor:     CMOS linear image sensor
Spectral Wavelength Range:     380nm to 780nm
Output Wavelength Pitch:     1nm
Measuring Range:     Ambient light (1 to 200,000lx=0.09 to 18,600fc) Flash Light (20 to 20,500lx・s)
Accuracy *4, 5 (Standard Illuminant:     Illuminance: ±5%±1 (1 to 3,000 lx), ±7.5MK±1digit (3,000 to 200,000 lx) of displayed v CCT: ±4MK-1 (Standard Illuminant A, 800 lx)
Repeatability (xy=Standard Illuminant A:     Illuminance: 1%+1 digit (30 to 200,000 lx), 5%+1 digit (1 to 30 lx) of displayed value CCT: 2MK-1 (500 to 100,000 lx) CCT: 4MK-1 (100 to 500 lx) CCT: 8MK-1 (30 to 100 lx) CCT: 17MK-1 (5 to 30 lx)
Visible-region Relative Spectral Response Characteristics (f):     Within 9%
Cosine Response (f2):     Within 6%
Temperature Drift (fT):     Illuminance: ±5% of displayed value CCT: ±12MK-1 (Standard Illuminant A, 1,000lx)
Humidity Drift (fH):     Illuminance: ±3% of displayed value CCT: ±12MK-1 (Standard Illuminant A, 1,000lx)

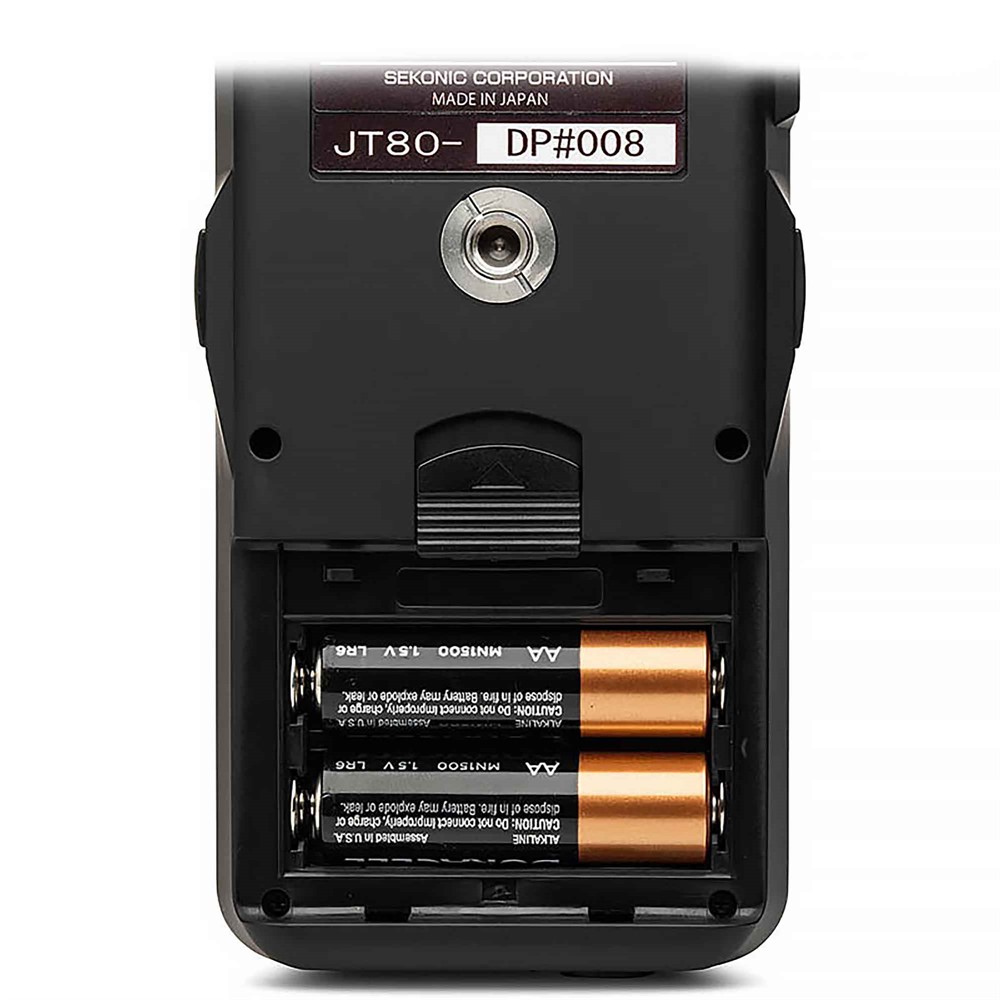

Power Source:     AA (1.5V) x 2 pcs, USB bus power
Measurement Time:     Ambient Max.: 15 sec. Ambient Min.: 0.5 sec. Flash: 1 to 1/500s (plush 1/75, 1/80, 1/90, 1/100, 1/200, 1/400)

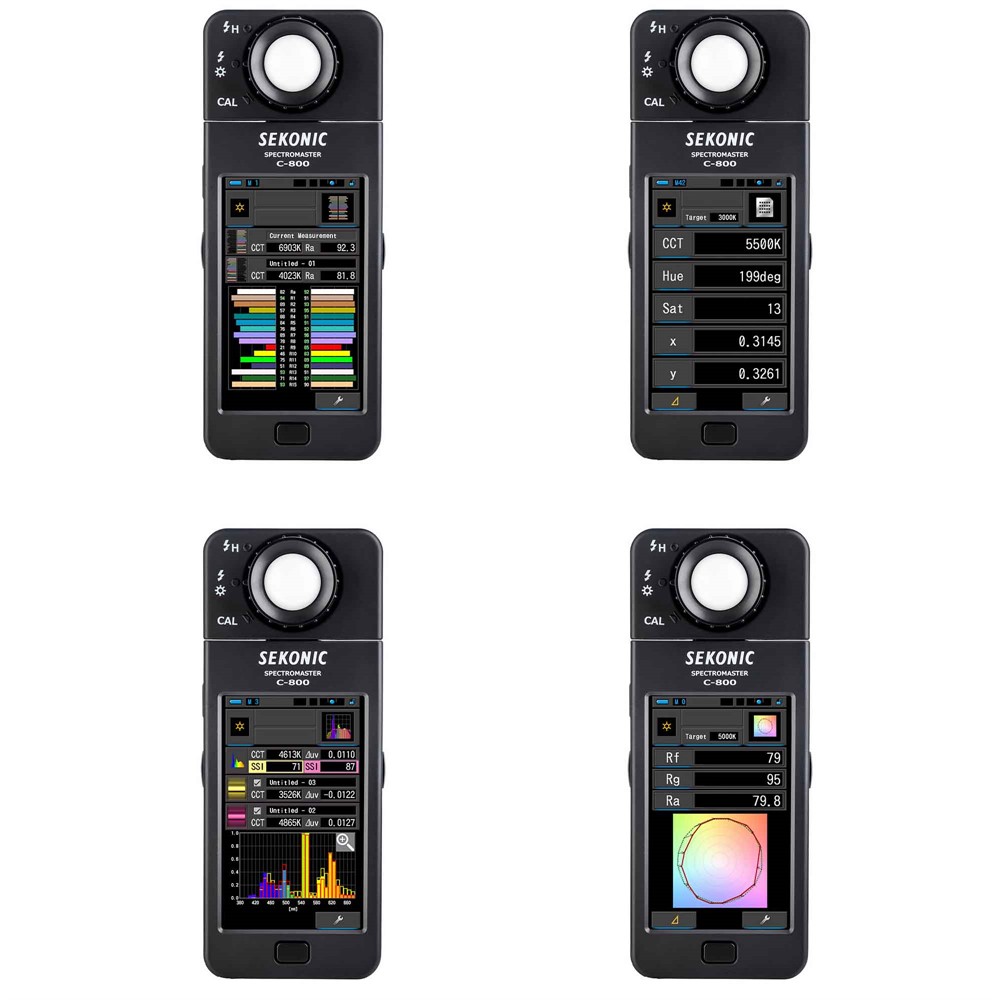

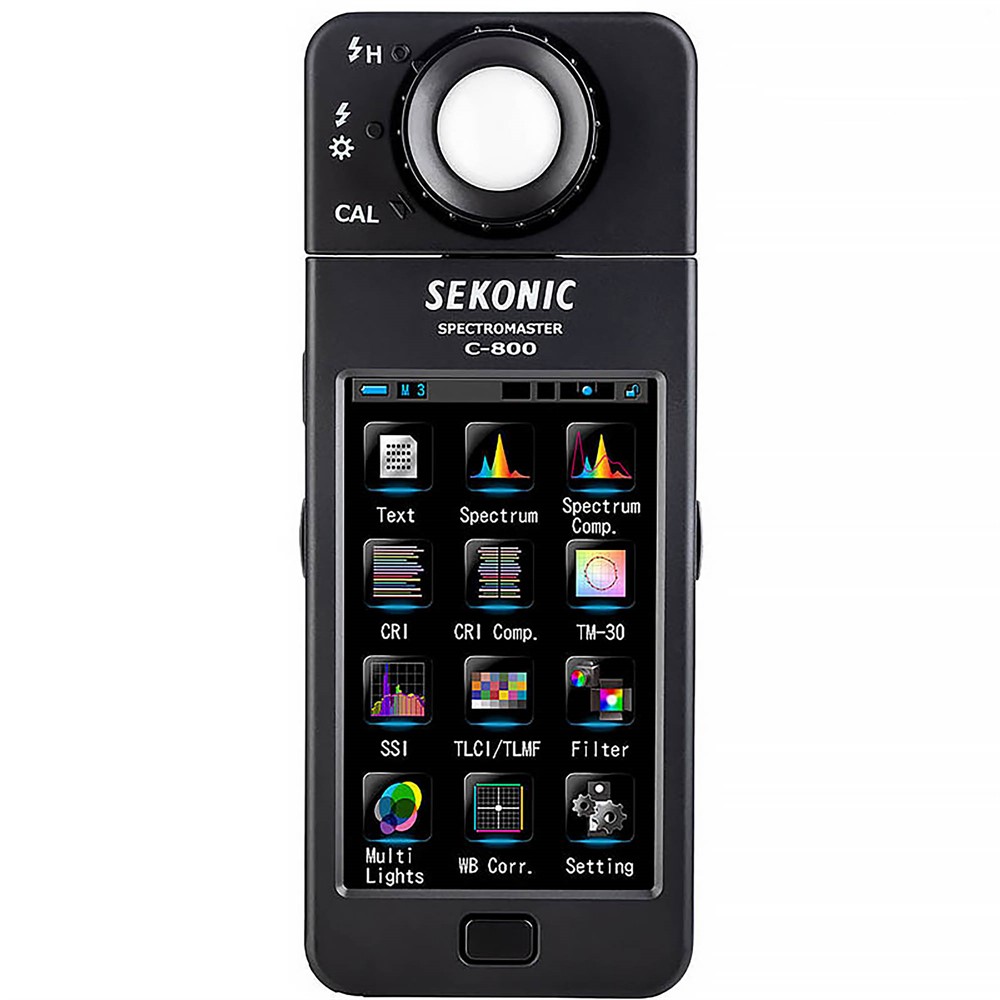

Measuring Modes:     Text mode, Spectral graph mode, Spectral comparison mode, CRI mode, CRI Comparison mode, TM-30 mode, SSI mode, TLCI/TLMF mode, Filter mode, Multi lights mode, White balance correction mode.
Other Functions:     Function, Auto power off, Auto Dimmer
Display languages:     English, Japanese, Chinese (Simplified)

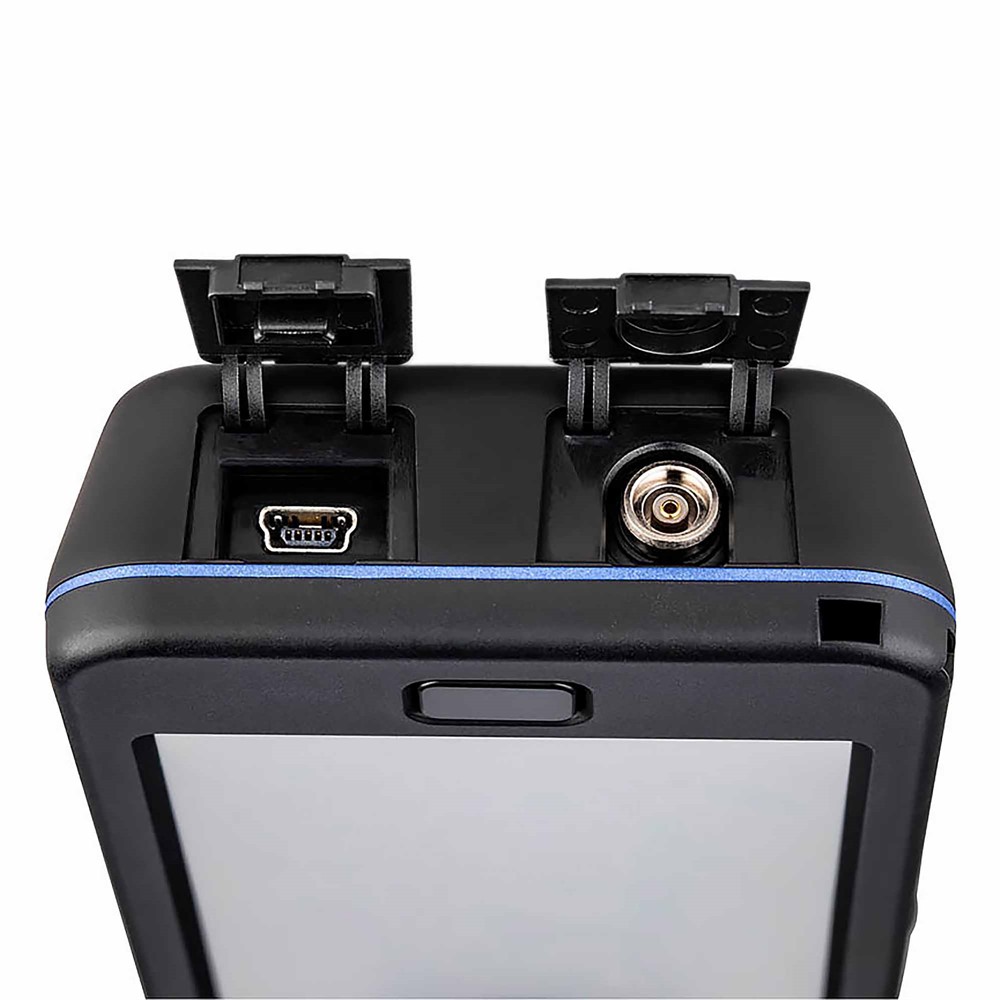

Interface:     USB 2.0
Operating Temperature:     -10 to 40 deg. C
Storage Temperature:     -10 to 40 deg. C
Dimensions:     73w x 183h x 27d (body), 40d (light receiving part) mm (2.9w x 7.2h x 1.1d, 1.6d inches)
Weight:     230g without batteries
