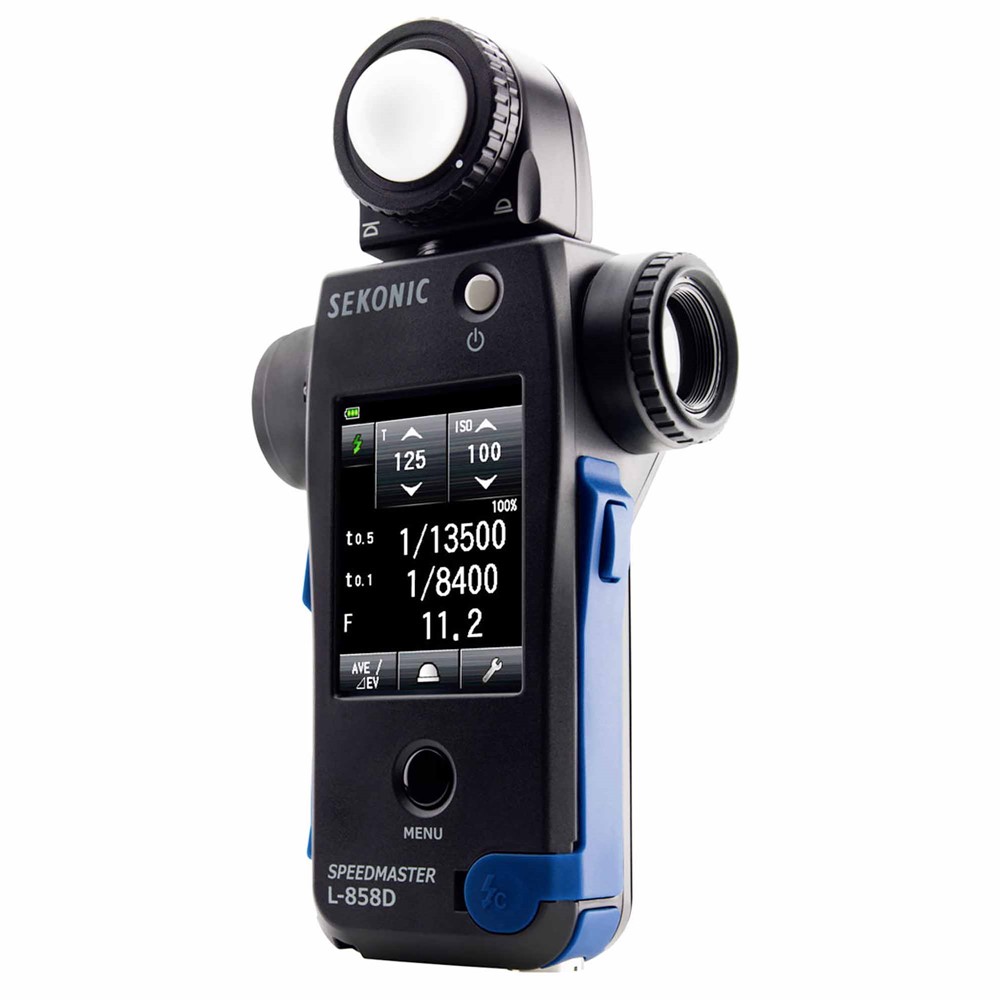

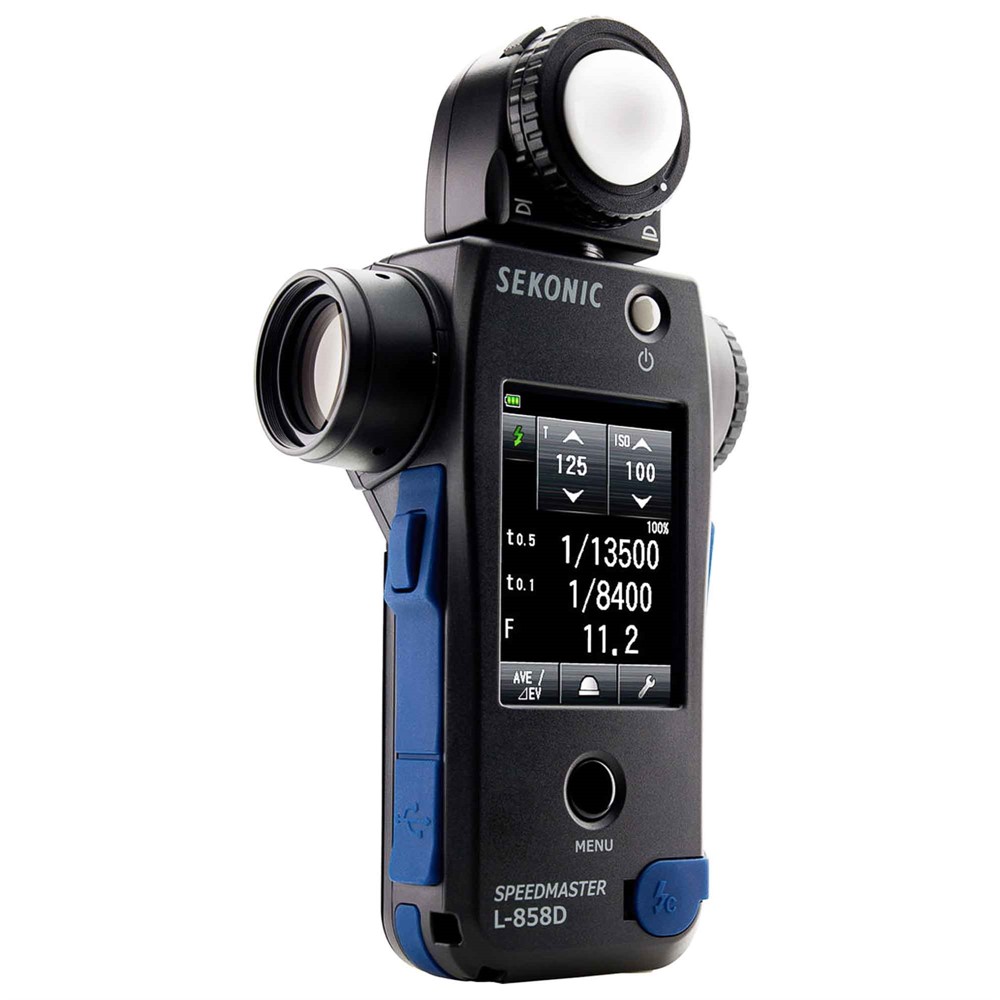

Sekonic L-858D

Lumidisc     Retractable
Reflected ligthg     Switching incident/reflected     Operation on LCD
Light receiving angle     1degree(built-in)
Viewfinder(Optional)     No
Flash light     Multiple flash mode      Yes
Cordless/cord-in mode     Yes
Radio triggering mode PocketWizard     Yes (optional)
Radio triggering mode Elinchrom Skyport     Yes (optional)
Radio triggering mode Phottix     Yes (optional)
Flash duration analysis mode     Yes
HSS mode     Yes

Measuring Range(ISO100)
Ambient     Incident     EV     -5 to 22.9
Reflected     EV     -1 to 24.4
Option VF 1deg.     EV     No
Option VF 5 deg.     EV     No
Option VF 10 deg.     EV     No
Illuminance     LUX     0.1 to 2,000,000 lx
FC(Foot-Candle)     0.01 to 180,000 fc
Luminance     Cd/m2     0.1 to 980,000 cd/m2
FL(Foot-Lambert)     0.03 to 290,000 fl
Flash     Incident     F     F0.5 to F161.2(=128.9)
Reflected     F     F1.0 to F161.2(=128.9)
Option VF 1 deg.     F     No
Option VF 5 deg.     F     No
Option VF 10 deg.     F     No

Display Range
ISO Sensitivity     ISO           3 to 13,107,200
ISO 2           No
Ambient     Aperture     Digital     F0.5 to 161.2(=128.9)
Step     1,  1/2,  1/3AV
Decimal fraction     0 to 0.9(digital)
Step     1/10AV
Analog dot scale     Ｆ1.0 to 90
Step     1/3 AV
Shutter speed     Digital     30m to 1/64,000s
Step     1,  1/2,  1/3 TV
Analog dot scale     4s to 1/2,000s
Step     1/3 AV
Frame Rate     Digital     1 to 1,000 f/s
EV     Digital     -73.9 to 103.8 for incident
-69.9 to 105.3 for reflected
Analog dot scale     -3.0 to +3.0 EV for incident
-7.0 to +7.0 EV for reflected
Step     1/3 EV
Lux     Digital     0.1 to 2,000,000 lx
Step     2 significant digits
Analog dot scale     0 to 1,000 lx
Step     in 50 lx
Analog dot scale     0 to 5,000 lx
Step     in 250 lx
Analog dot scale     0 to 25,000 lx
Step     in 2,500 lx
FC(Foot-candle)     Digital     0.01 to 180,000 fc
Step     2 significant digits
Analog dot scale     0 to 100 fc
Step     in 5 fc
Analog dot scale     0 to 500 fc
Step     in 25 fc
Analog dot scale     0 to 5,000 fc
Step     in 250 fc
Cd/m2     Digital     0.1 to 980,000 cd/m2
Step     2 significant digits
Analog dot scale     0 to 50 cd/m2
Step     in 2.5 cd/m2
Analog dot scale     0 to 250 cd/m2
Step     in 12.5 cd/m2
Analog dot scale     0 to 2,500 cd/m2
Step     in 125 cd/m2
FL(Foot-lambert)     Digital     0.03 to 290,000 fl
Step     2 significant digits
Analog dot scale     0 to 20 fl
Step     in 1 fl
Analog dot scale     0 to 100 fl
Step     in 5 fl
Analog dot scale     0 to 1,000 fl
Step     in 50 fl
Flash     Aperture     Digital     F0.5 to 161.2(=128.9)
Step     1,  1/2,  1/3AV
Analog dot scale     F0.1 to 90
Step     1/3 AV
Shutter speed     Digital     30m to 1/16,000s
Step     1,  1/2,  1/3TV
EV     Digital     No
Analog dot scale     -3.0 to +3.0 EV for incident
-7.0 to +7.0 EV for reflected
Step     1/3 EV
Flash duration     Digital     1/40 to 1/55,500（25ms to 18us）

Setting Range
ISO Sensitivity           ISO     3 to 13,107,200 plus 850
Step     1/3 SV
ISO 2     No
Step     No
Ambient     Aperture     F     F0.5 to 161
Step     1,  1/2,  1/3AV
Shutter speed     T     30m to 1/64,000s
plus 1/200, 1/400s
Step     1,  1/2,  1/3TV
Shutter angle     degrees     1 to 358 deg. plus other 20 settings (customized from 0.001 to 360)
Frame Rate     frame per second     1, 2, 3, 4, 6, 8, 10, 12, 14, 15, 16, 18, 20, 23.976, 24, 25, 29.97, 30, 32, 36, 40, 47.952, 48, 50, 59.94, 60, 64, 72, 75, 90, 96, 100, 120, 125, 128, 150, 180, 200, 240, 250, 256, 300, 360, 375, 500, 625, 750, 1000 plus other 20 settings (customized from 0.001 to 99,999.999)
Flash     Shutter speed     T     30m to 1/16,000s
plus 1/75,  1/80,  1/90,  1/100,  1/200,  1/400s
Step     1,  1/2,  1/3TV
Flash duration      t value     0.1 to 0.9 (in 0.1 step)

Functions
Multiple cumulative     Yes(Unlimited)
Average     Yes
Shadow     No
High light     No
Zone System     No
Flash Analyzing     Yes(in 10% step)
Memory     Yes(9 times) both incident and spot
Memory clear     Yes (individually)
Contrast Function     Yes(+/-9.9EV in 1/10 step)
Film memory (ISO 2)     No
Filter compensation     Yes(-12 to 12EV)
Filter factor number compensation     Yes (preset 24 types plus 6 settings)
External receptor jack     No

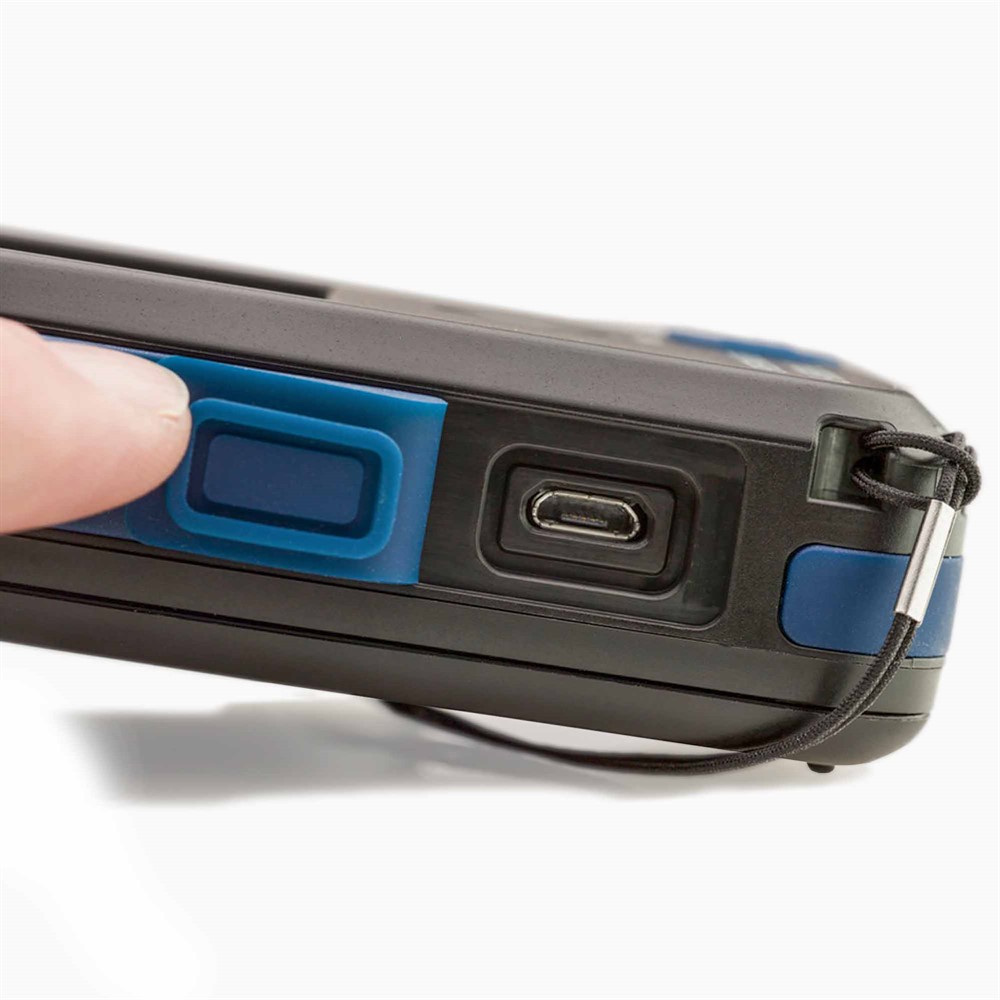

USB port     Yes
Battery check     Yes
Auto power off     Yes (selectable.)
Under/Over exposure display     Yes
Exposure Warning Indicator     Yes
Exposure compensation     Yes(-9.9 to +9.9)
Calibration compensation     Yes(-1.0 to +1.0)
Exposure Profile     Yes
Dip switch (L-358/608)     No
Custom settings     Yes (17 items)
Synchro terminal     Yes
LCD backlight     Yes
Water registance     Yes
Switching incident/reflected     Yes (software)
Retractable lumisphere     Yes
Setting lock     Yes (Touch panel)
How to change setting     Touch panel operation
Diopter adjustment     Yes (-1 to 2.5 D)
Tripod socket     Yes

Others
Operating temperature     -10 to 50℃
Storage temperature     -20 to 60℃

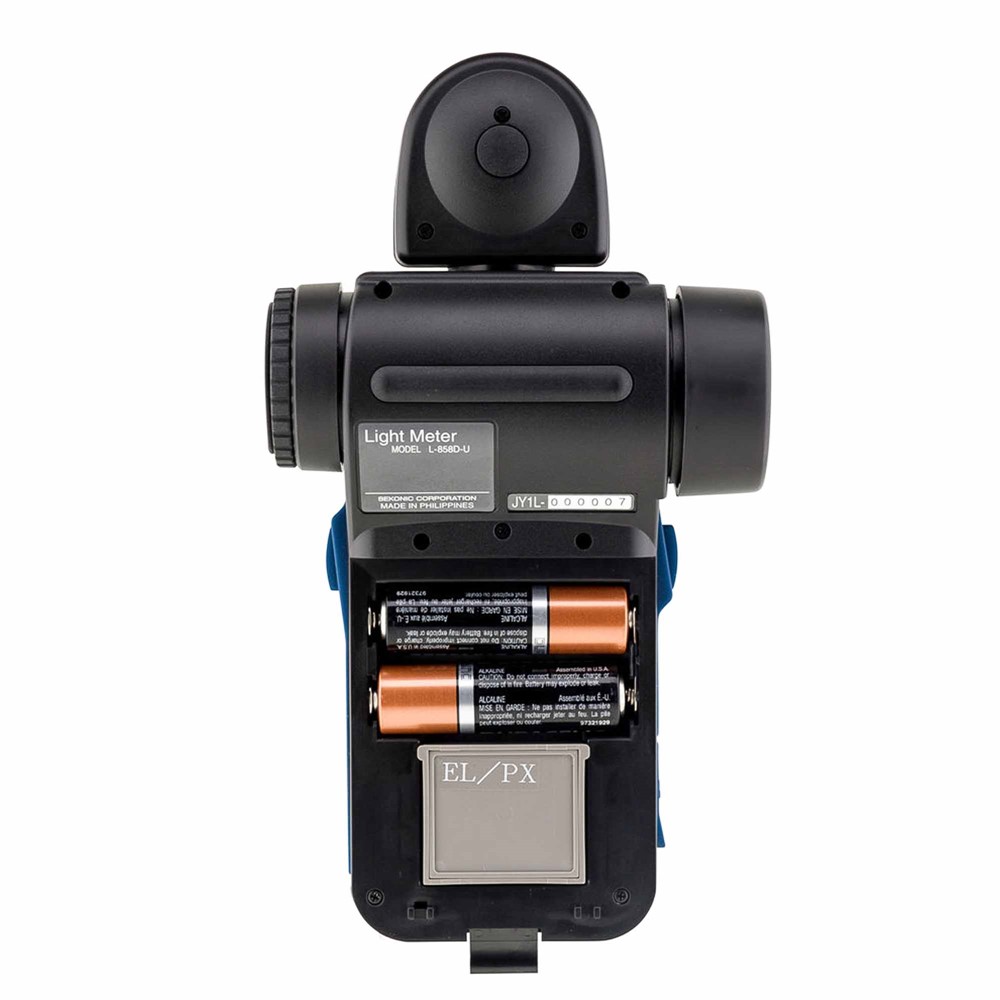

Power source     1.5V x 2 (AA battery) and USB bus power
Weight     10.58 oz. (300 g)
Dimensions (W x H x D)     3.7 x 6.94 x 1.94 in. (93.9 x 176.3 x 49.4 mm)
LCD     2.4″ color dot matrix LCD

Standard Accessory
USB cable     No
CD-rom with Software & Manual     No (download from website)
Sticker for multi-key &/or CS operation     No
Quick Guide / Start Up Guide     Yes
Lens Cap     Yes
Strap     Yes
Synchro terminal cap     Yes (built-in)
Soft case     Yes
Anti glare film     Yes

Optional Accessory supplied
Booster     No
Mini light receptor     No
Viewfinder     No
Lumishphere     Yes
Lumidisc     Yes (same as Lumisphere)
Lumigrid     No
ND diffuser     No
Pin point receptor     No
Spot mask     No
Synchro cord     Yes
Radio wave triggering system     Yes
Step-up ring     Yes
18% Gray card (folded)     Yes
Exposure Profile Target / II     Yes

EAN: 4962294011871
